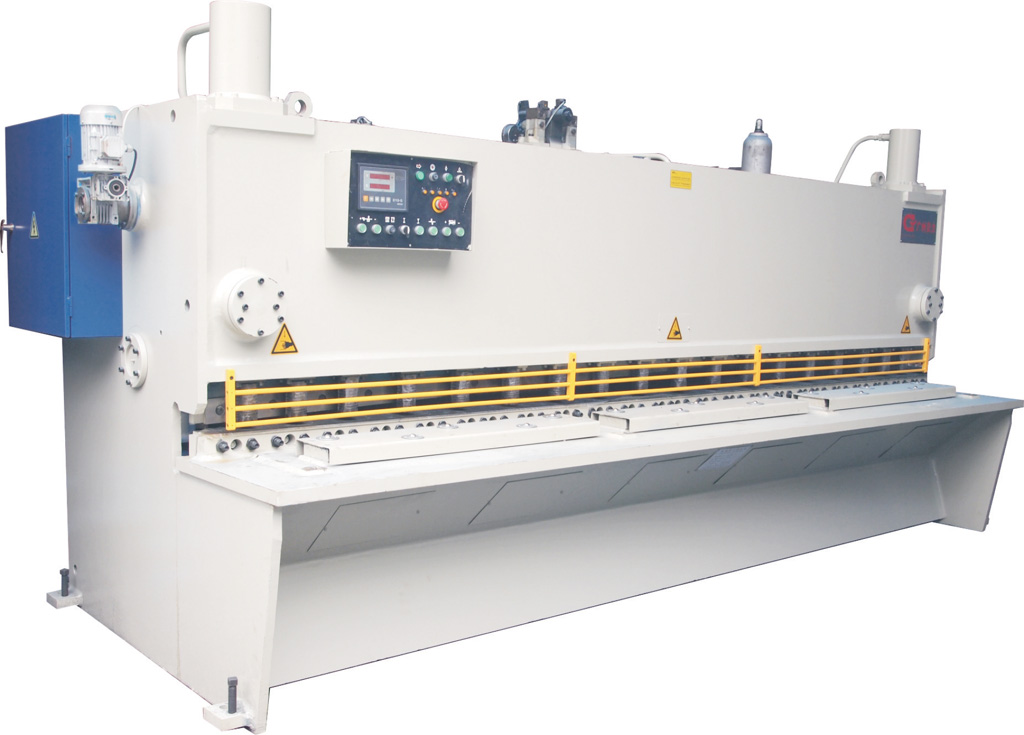

HYDRAULIC GUILLOTINE SHEARER -
Ffatures: 1.Equipped with E10 control system.2.Integrated hydraulic system,more reliable.3.Eliminate gaps by screw ball guide-rail,improve shearing quality.4.Minimize Shearing plate deformation by motorized shearing angle.5.Motorized blades clearance adjustment.6.Motorized back gauge with digital read-out,precision positon display.7.Equipped with dedicated stable and rapid return accumulator. -
FUNCTION:
- Product description:：
MODEL
MAXIMUM
SHEAR
THICKNESS
(MM)MAXIMUM
SHEAR
WIDTH
(MM)SHEAR
ANGLEPLATE
STRENGTH(N/MM2)BACK-GAUGE
STATION
(MM)MAIN
MOTOR
(KW)DIMENSION
(L*W*H)
(MM)WEIGHT(KG)
QC11Y-6X2500
6 2500
0.5°-2°
450
600
7.5
3100x1500x1900
5000
QC11Y-6X3200
6
3200
0.5°-2°
450
600
7.5
3800x1500x1985
6100
QC11Y-6X4000
6
4000
0.5°-2°
450
600
7.5
4600x1700x2115
8200
QC11Y-8X2500
8
2500
0.5°-2°
450
600
11
3100x1550x1960
5800
QC11Y-8X3200
8
3200
0.5°-2°
450
600
11
3800x1720x2015
7700
QC11Y-8X4000
8
4000
0.5°-2°
450
600
11
4620x1800x2650
9100
QC11Y-8X6000
8
6000
0.5°-2°
450
600
15
6700x2050x2500
19800
QC11Y-12X2500
12
2500
0.5°-2.5°
450
1000
18.5
3180x1770x2100
8700
QC11Y-12X3200
12
3200
0.5°-2.5°
450
1000
18.5
3980x1840x2310
1100
QC11Y-12X4000
12
4000
0.5°-2.5°
450
1000
18.5
4780x2000x2400
1400
QC11Y-12X6000
12
6000
0.5°-2.5°
450
1000
22
6800x2500x2950
27000
QC11Y-16X2500
16
2500
0.5°-2.5°
450
1000
22
3280x1860x2200
9600
QC11Y-16X3200
16
3200
0.5°-2.5°
450
1000
22
3980x2010x2425
11800
QC11Y-16X4000
16
4000
0.5°-2.5°
450
1000
22
4780x2200x2520
17500
QC11Y-16X6000
16
6000
0.5°-2.5°
450
1000
30
6800x2600x3050
32300
QC11Y-20X2500
20
2500
0.5°-2.5°
450
1000
30
3300x2100x2380
12300
QC11Y-20X3200
20
3200
0.5°-2.5°
450
1000
30
4000x2300x2490
18000
QC11Y-20X4000
20
4000
0.5°-2.5°
450
1000
30
4800x2500x3000
24500
QC11Y-25X2500
25
2500
0.5°-2.5°
450
1000
37
3400x2300x2750
18500
QC11Y-25X3200
25
3200
0.5°-2.5°
450
1000
37
4100x2400x2850
23800
QC11Y-32X2500
32
2500
0.5°-3°
450
1000
37
3400x2400x2850
23000
QC11Y-32X3200
32
3200
0.5°-3°
450
1000
37
4100x2550x3000
29000
QC11Y-40X2500
40
2500
1°-3.5°
450
1000
45
3400x2600x3100
32500
